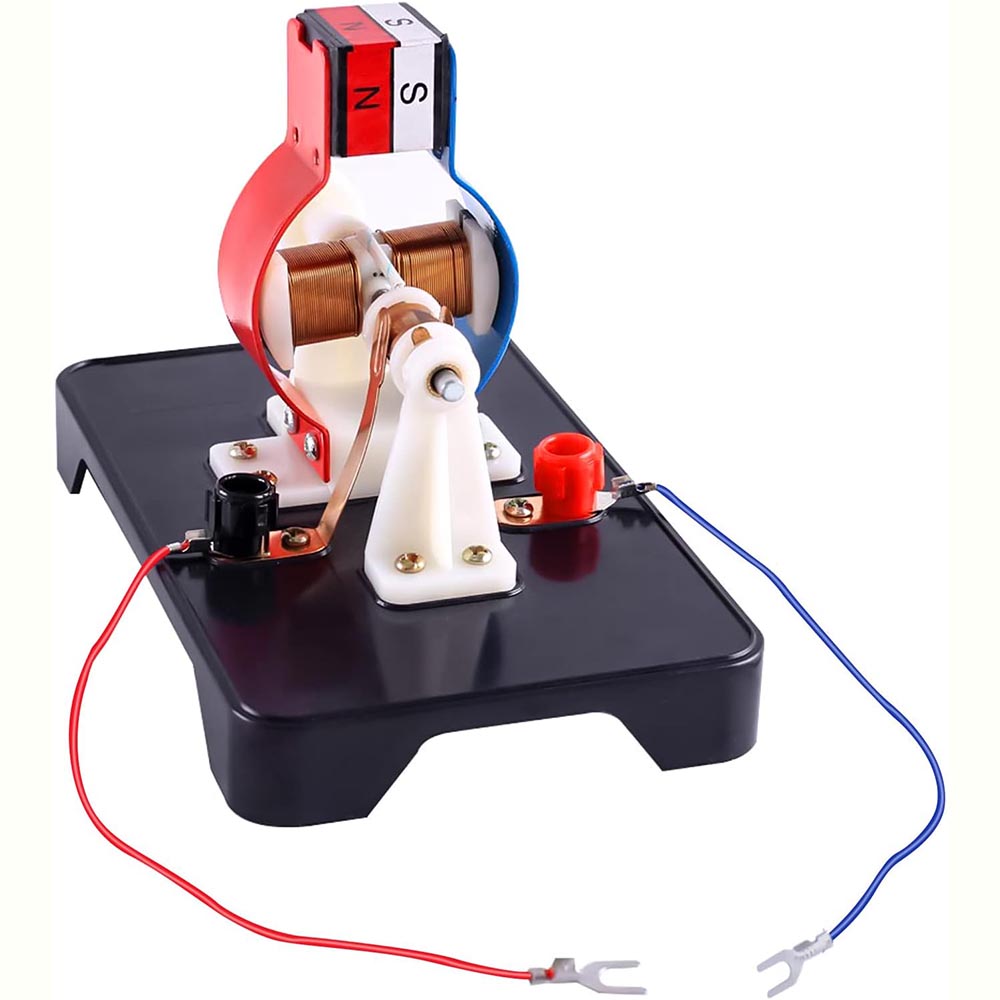

This Electric Motor Kit is designed to teach the working principles of a permanent magnet DC motor and transform it into a DC electric motor. It is perfect for electronic enthusiasts and DIY beginners who want to learn about simple motor design, as it is easy to assemble and disassemble. Additionally, it is ideal for school science projects or as a teaching aid.

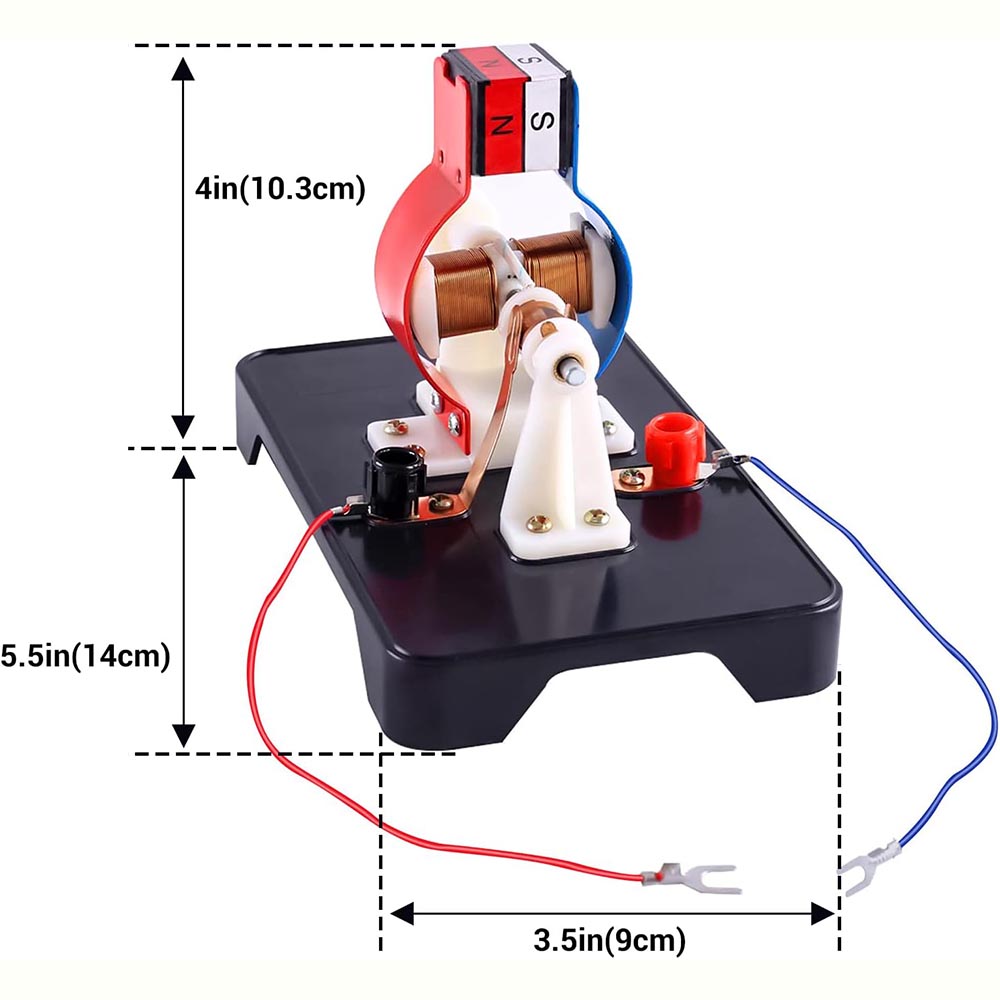

This demo motor comes equipped with a power cable and, when connected to a DC 3-6V power supply, will rotate like a real motor. It has an assembled size of 14 x 9 x 10 cm (L x W x H).

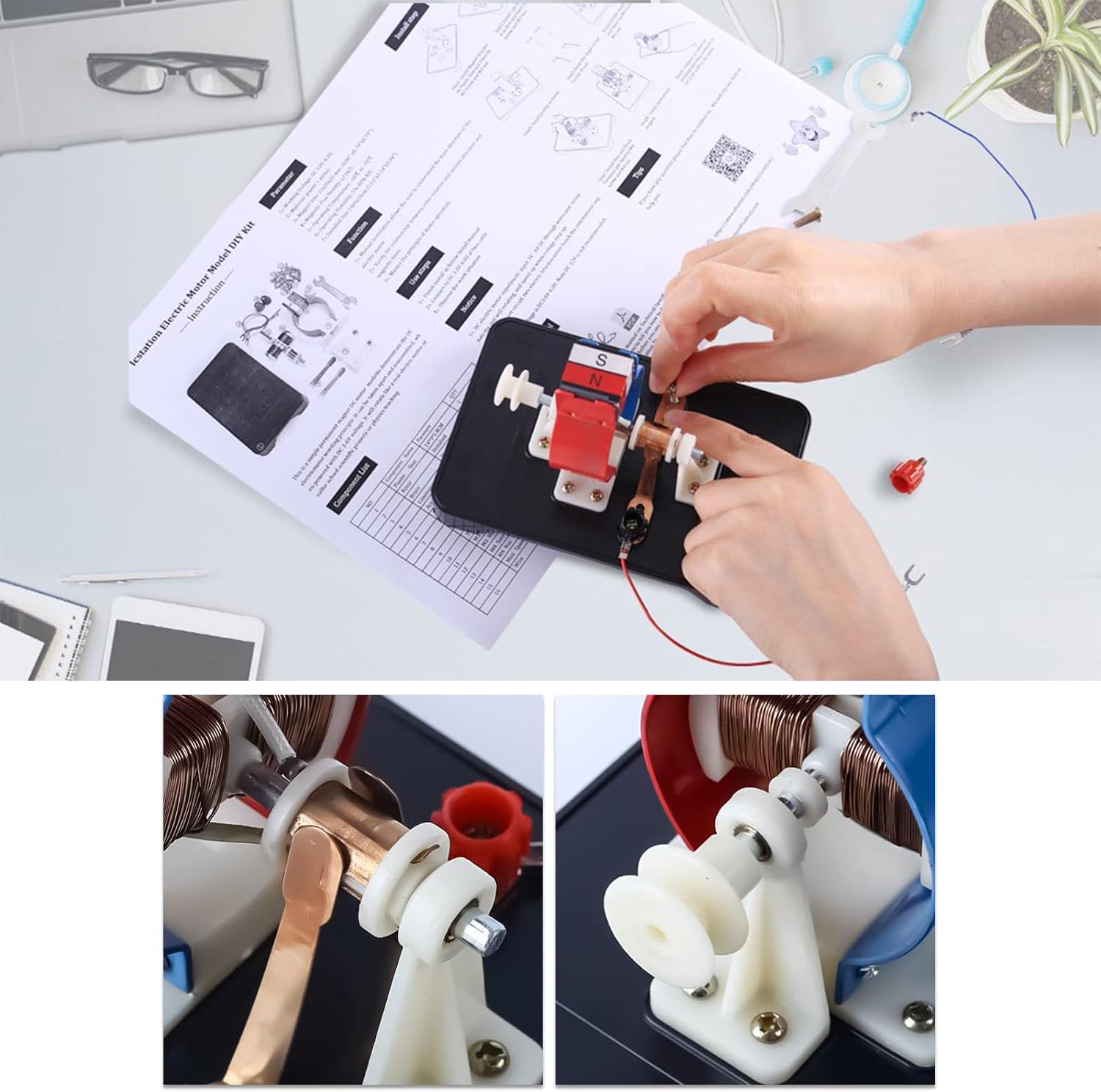

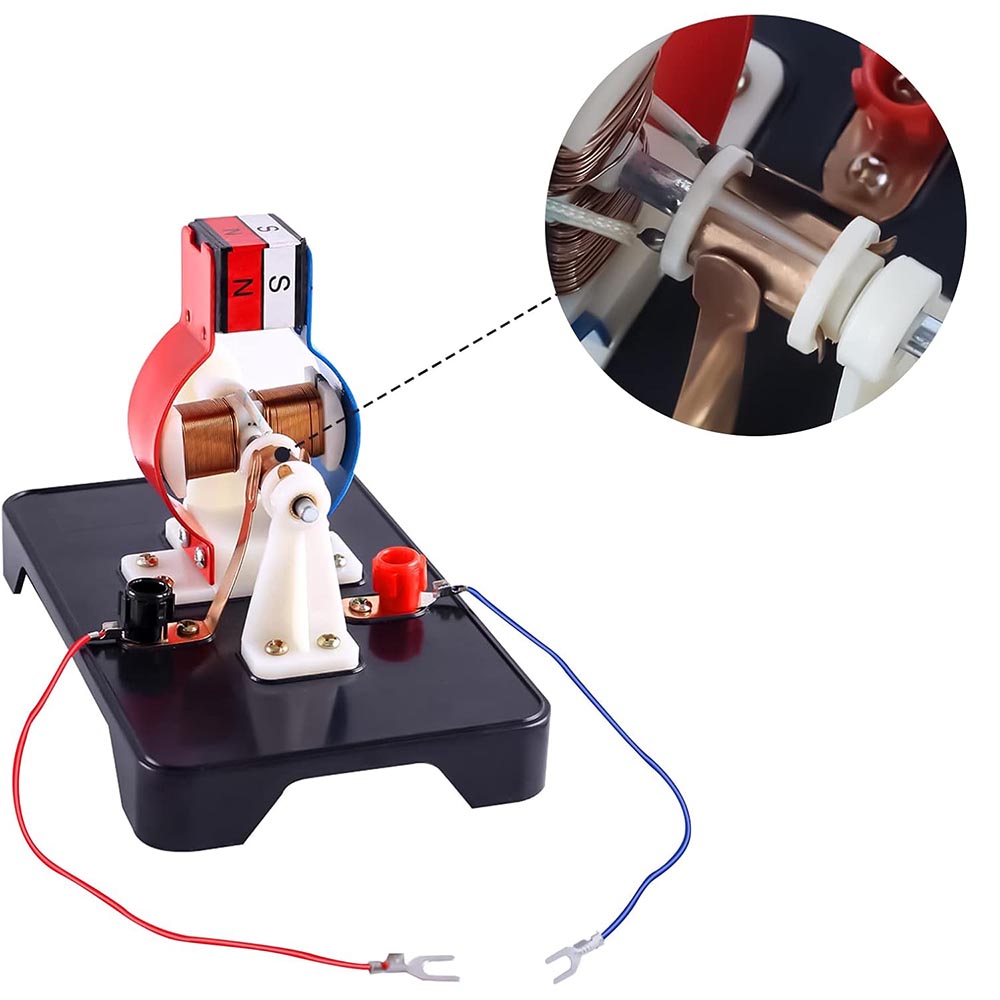

If you have assembled the kit, tested the power supply, and it still isn’t working, please check the Armature Coil and Electric Brushes. If you find that there is poor connection, adjust them so that they touch closely. You can turn the rotor bracket to ensure that the gap between the two brushes is in the middle.

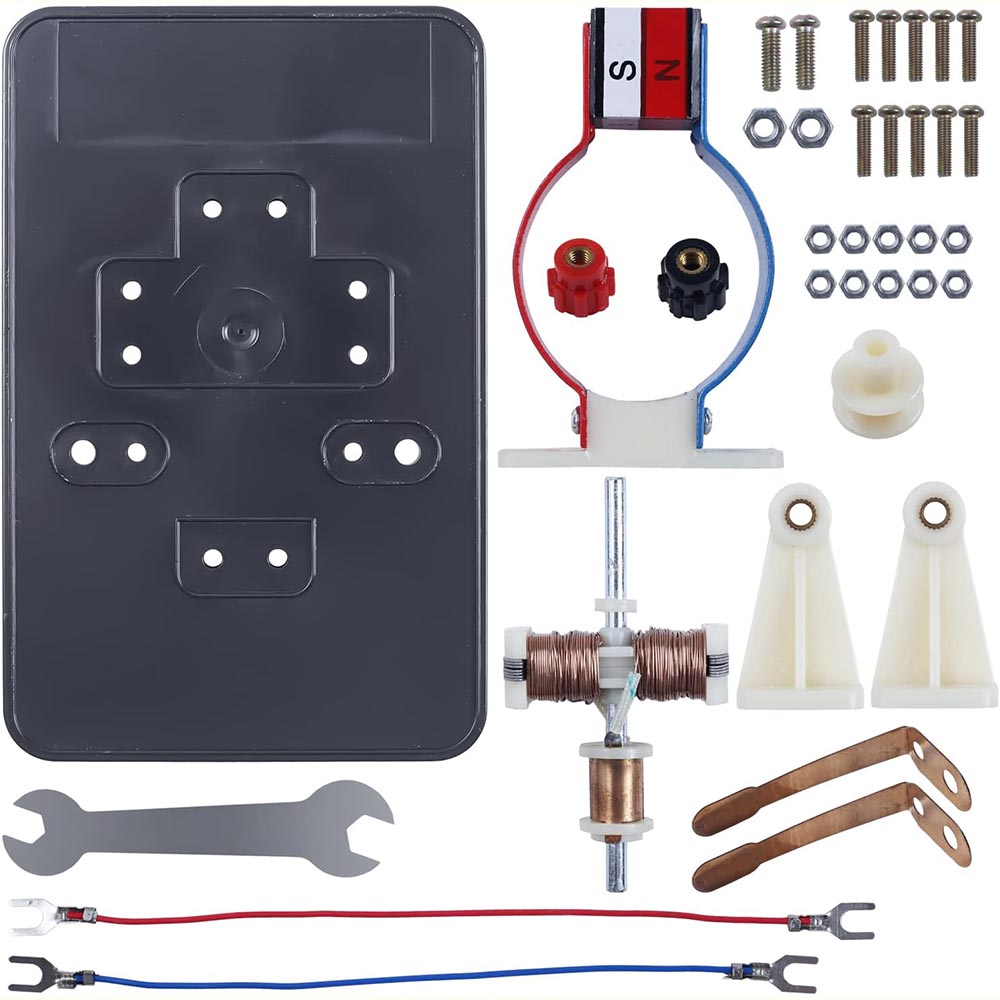

Note: The product is sold disassembled.
