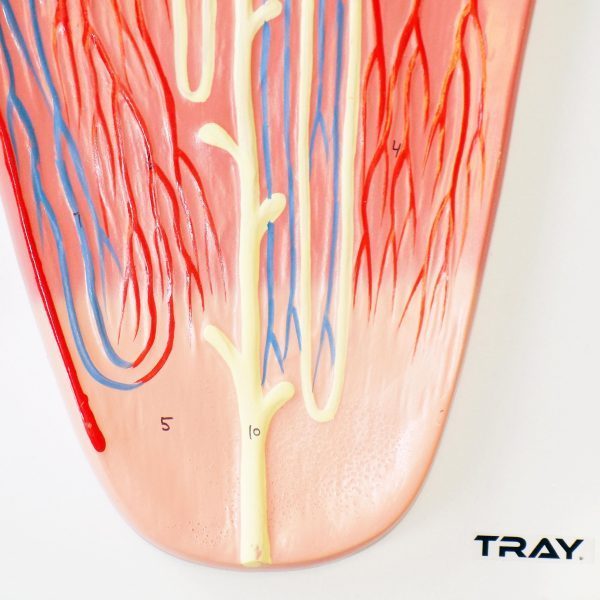

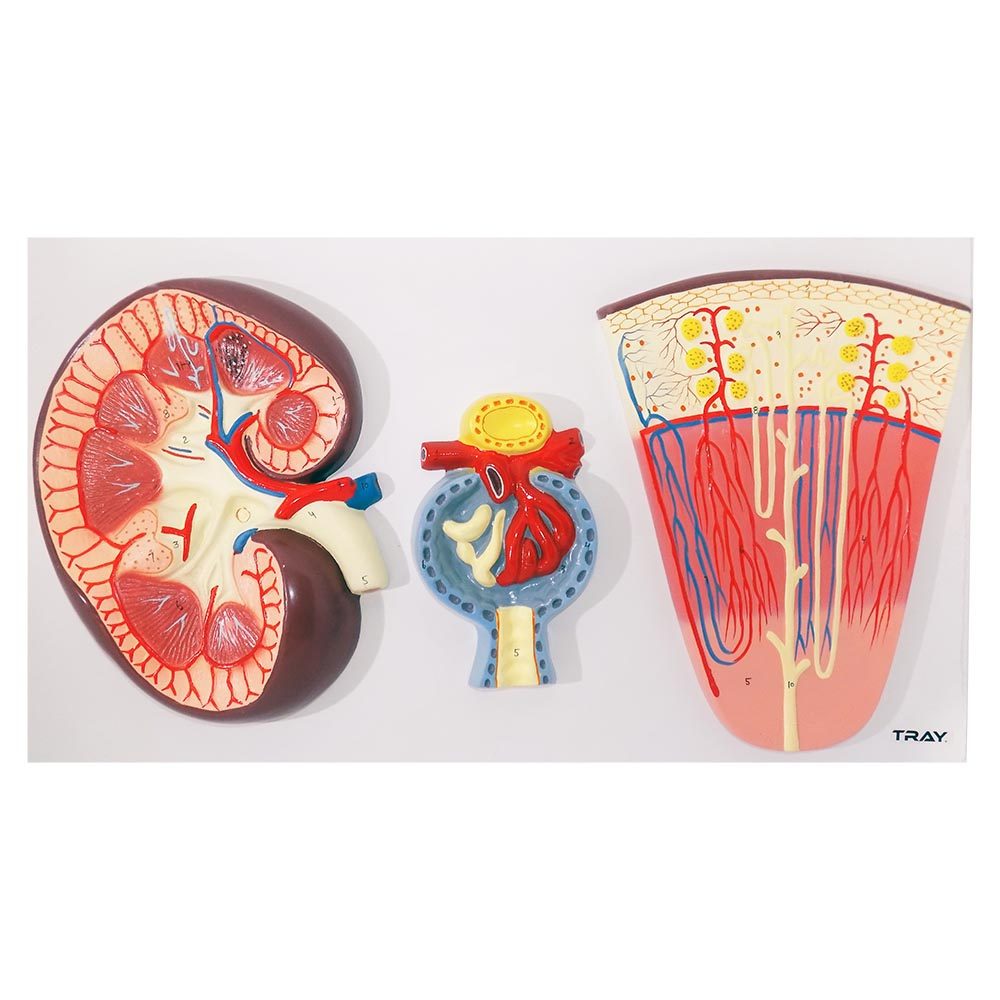

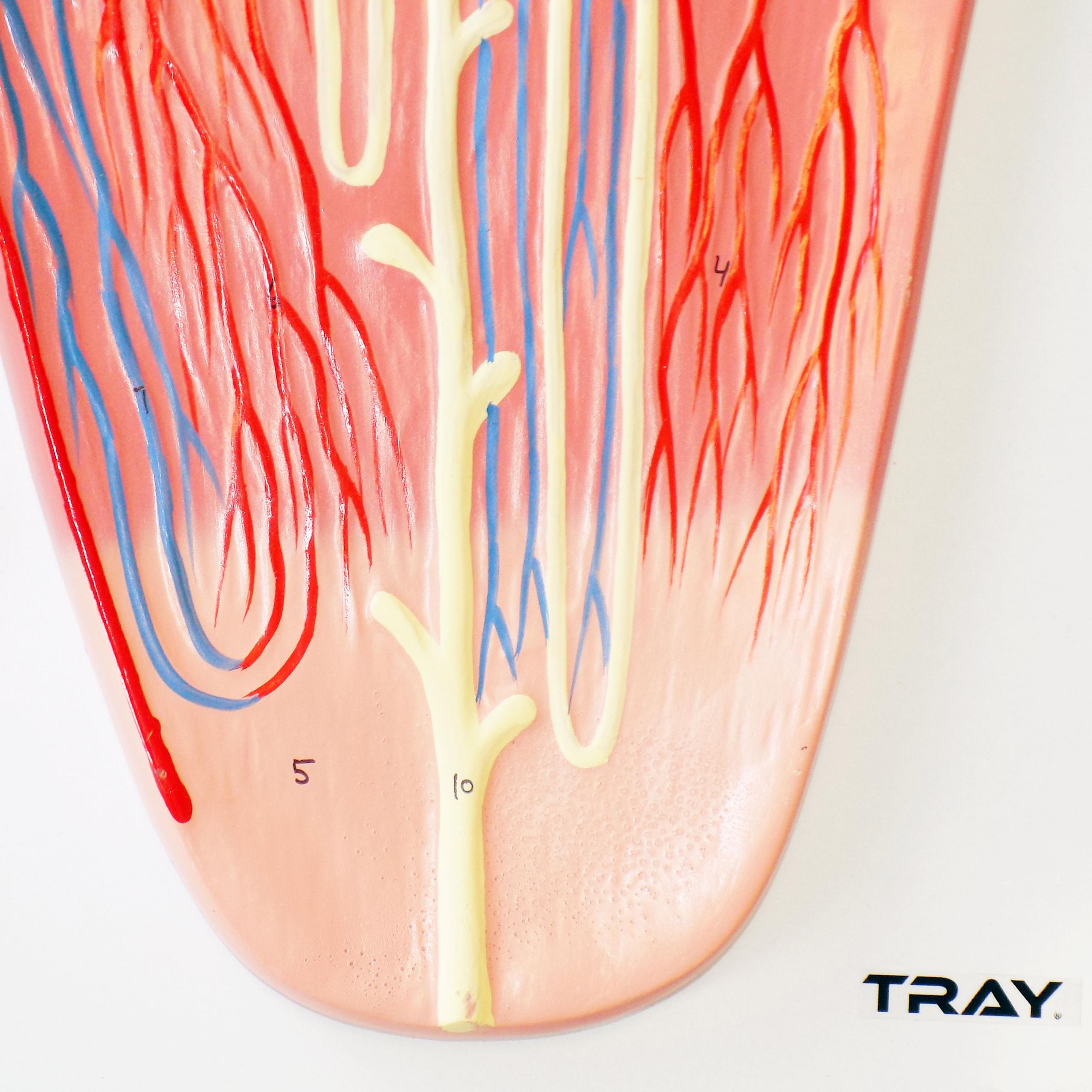

This three model set shows the basic structure of the kidney. The first model is a frontal section of the kidney (enlarged three times) illustrating the adrenal gland, cortex, medulla, pyramids with papillae, renal pelvis and blood vessels. Representing a nephron enlarged 120 times, the second model shows a renal tubule, a collecting tube system and Henle’s loop. The third one enlarged 700 times, illustrates a Malpighian Corpuscle with the Bowman’s Capsule. Set promotes understanding of kidney anatomy in all the inner details.

Mounted on board. Size: 61×35 cm

Kidney Section Model Features

• 3 models shown together
• Kidney enlarged 3 times
• Nephron magnified 120 times
• Glomerulus magnified 700 times
• Model Dimensions: 61×35 cm
• Weight: 1700 g

A total of 27 regions are marked on the model and these areas are explained in the accompanying information card. The information card is prepared in Turkish and English.

Human Kidney Glomerulus and Nephron Model Keycard

GLOMERULUS

1. Vas afferens
2. Vas efferens
3. Glomerular capilleries
4. Cavity of capsule
5. Convoluted tubule
6. Bowman capsule

NEPHRON

1. Fasica
2. Capsula adiposa
3. Glomeruli
4. Pyramis
5. Pyramides renalis
6. Arteriolae rectae
7. Venulae rectae
8. Tubuli renales recti
9. Junction segment
10. Nephron

KIDNEY

1. Capsule
2. Calyces renales majores
3. Calyces renales minores
4. Pelvis renalis
5. Ureter
6. Medulla renis
7. Papillae renalis
8. Cortex renis
9. Renal artery
10. Renal vein
11. Collecting tubule
