It is used as an adjustable resistor, that is, a current limiter, in electrical experiments. 5 A current can be drawn, it has a resistance value of 11 ohms.

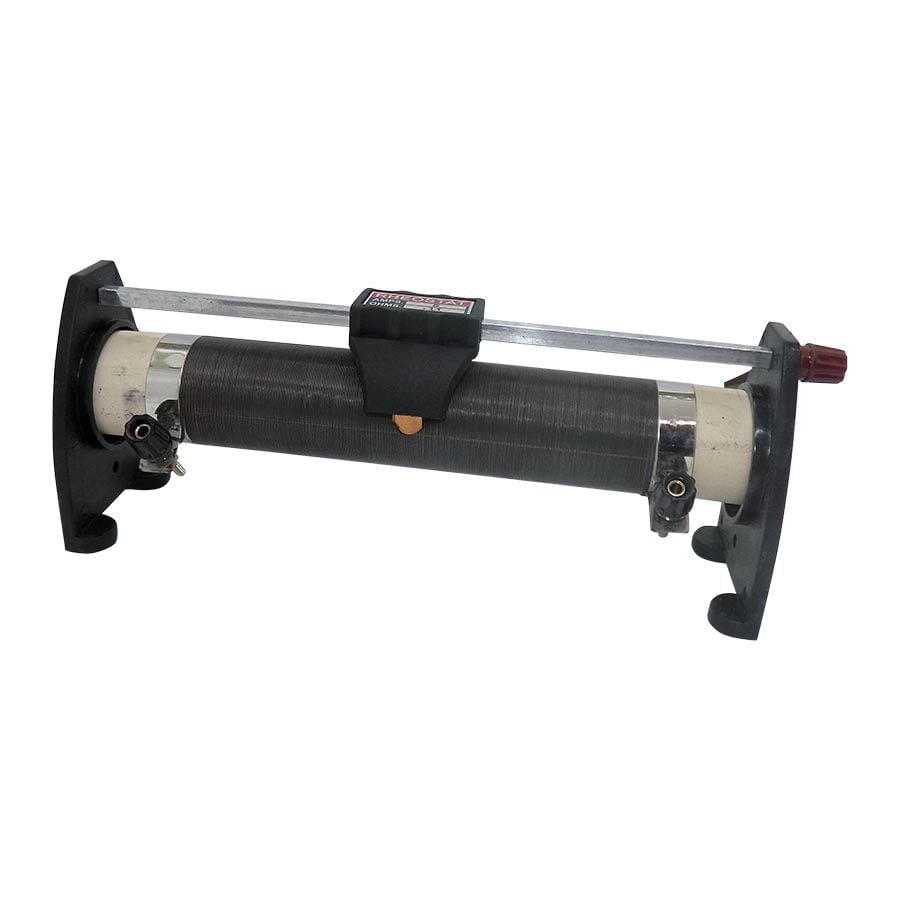

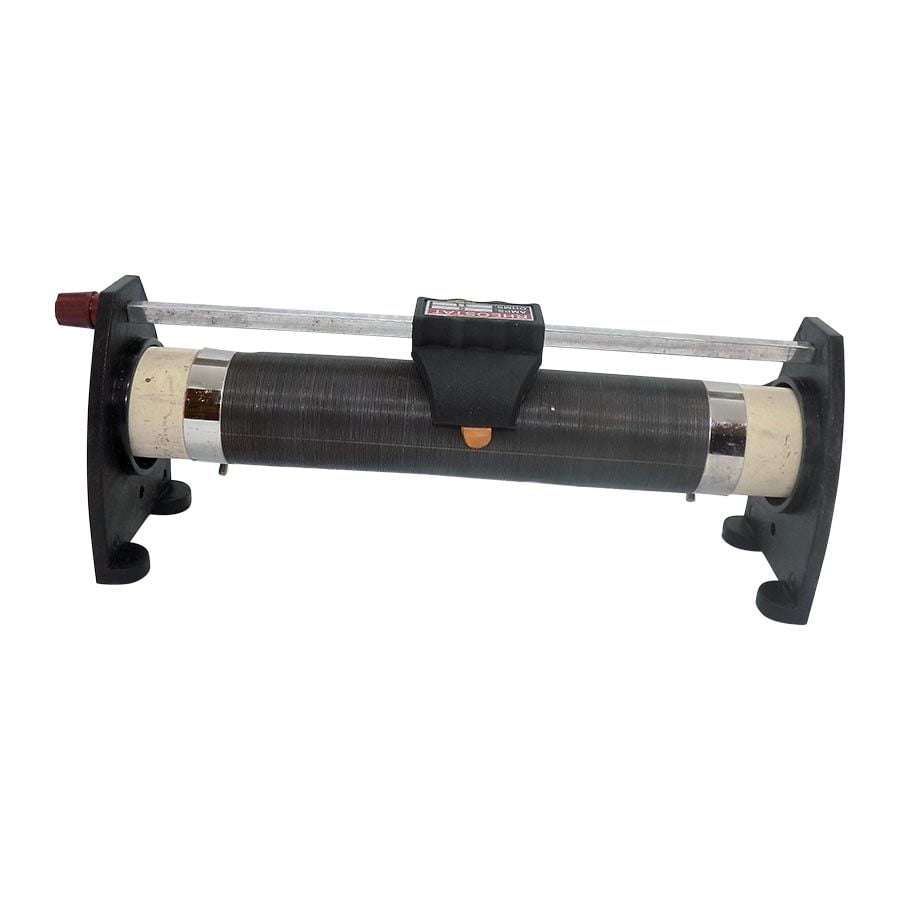

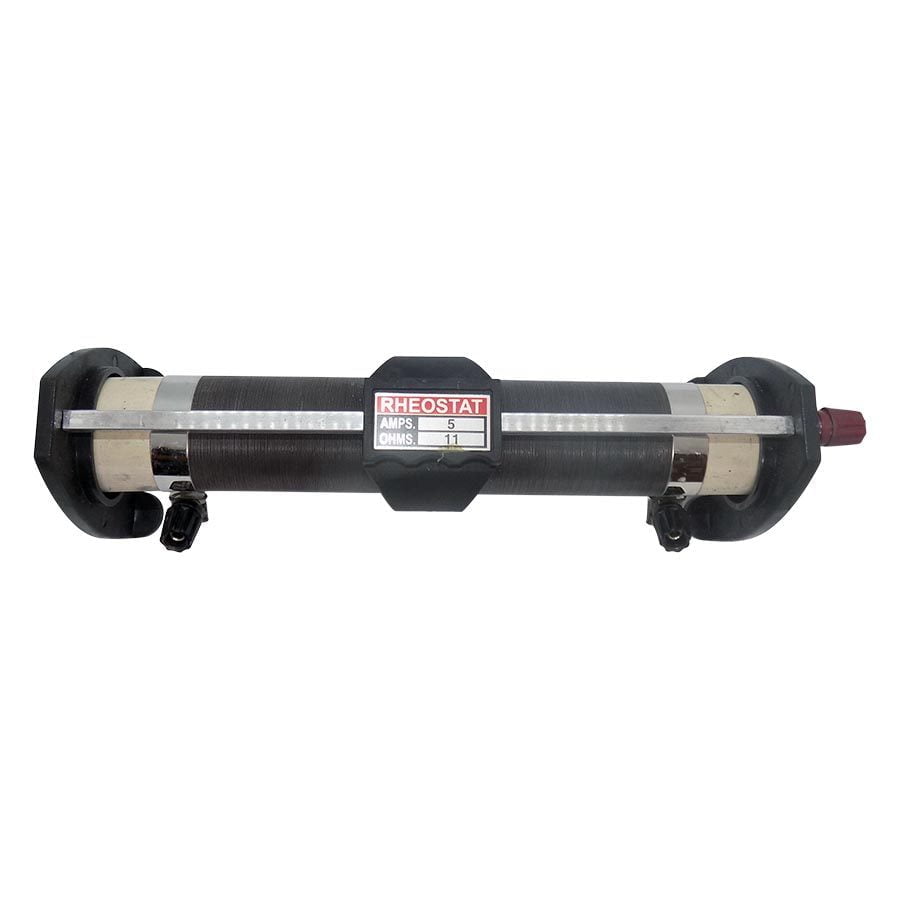

The rheostat is in the form of a single tube and open type, and consists of a resistance wire layer supported on bakelite legs, wrapped on an insulating and heat resistant porcelain tube. A brass sliding contact supported by Bakelite feet moves on brass coiled wires. Three 4 mm banana socket terminals, one to the sliding contact and the other two to the winding leads.
11 Ohm Rheostat Features
- Resistance: 11 ohms
- Current: 5 A
- Tube Diameter: 43 mm
- Length: 250mm
- Height: 100mm
- Width: 70mm
- Weight: 600 g
